Parts breakdown

carolb4 · February 11, 2009, 10:25pm

I can find the lists of parts and price but there are no pictures of the breakdown. Can you give me a lead?

Gene · February 12, 2009, 10:12pm

Which parts (or part of the dishwasher) exactly are you looking for?

Gene.

carolb4 · February 13, 2009, 1:31am

I am wanting a wiring diagram so that I can understand the parts of the control panel and a parts diagram so that I can learn the parts of the dishwasher

Gene · February 13, 2009, 2:43am

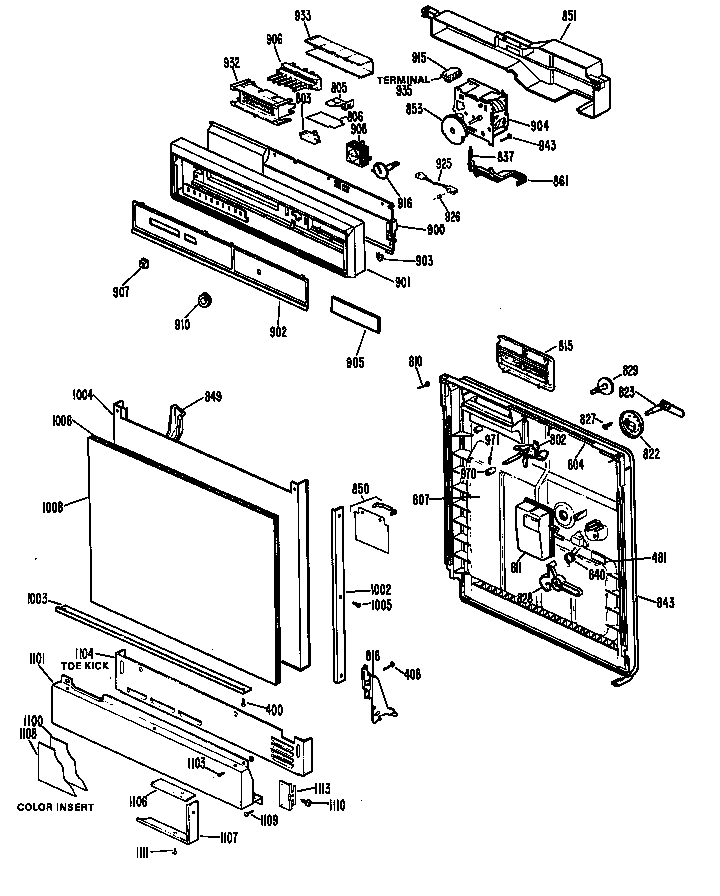

You can find the wiring diagram on the right side under the dishwasher tub (Behind the toe panel). Here is the control panel diagram.

Gene.

carolb4 · February 19, 2009, 7:35pm

Where can I find diagrams of the remainder of the dishwasher?

Gene · February 19, 2009, 8:55pm

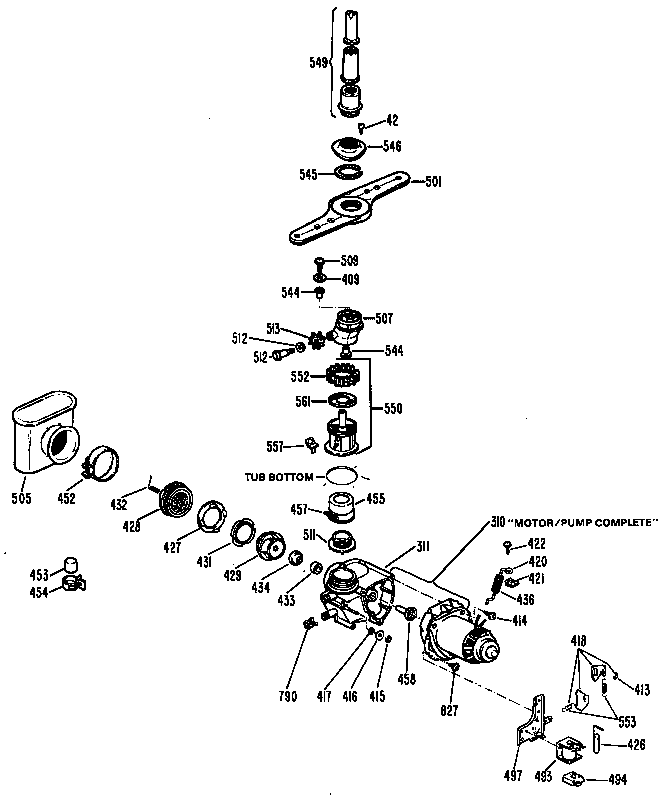

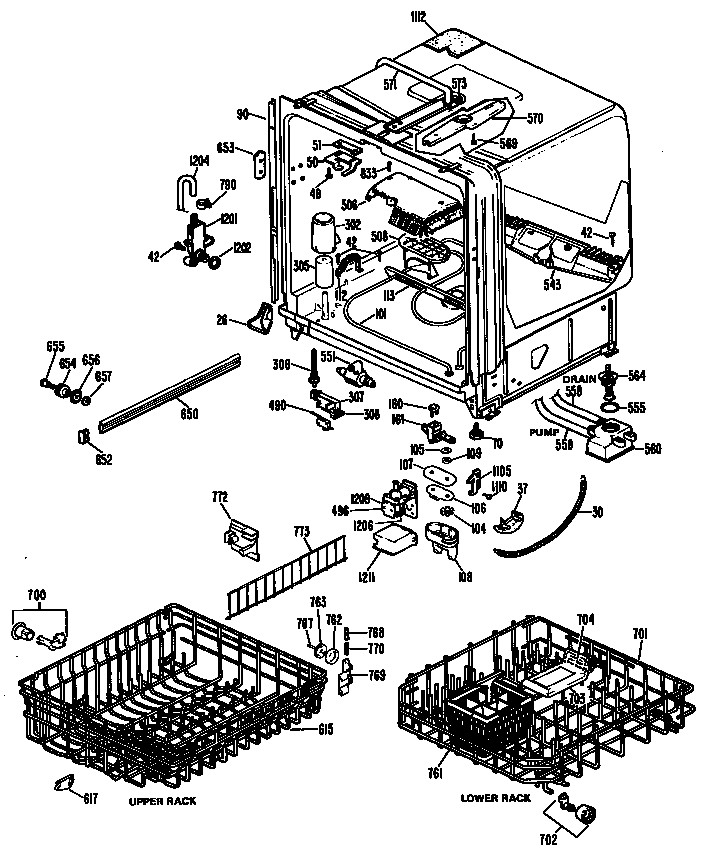

Here are the tub/racks diagram and the pump diagram.

Gene.
