Maytag MED6230HW2 Heating Element Wiring

Joats · December 5, 2025, 9:56pm

Brand:Maytag
Model Number:MED6230HW2
Main Symptom: Heating Element Wiring
What happens & when:

Error Code (if any):
Parts or tests already tried:replaced heating element but I forgot to take a picture of the wiring before I disconnected it and now I’m worried about reconnecting incorrectly.
Photos / video link:

DavidP_APP_Team · December 5, 2025, 10:08pm

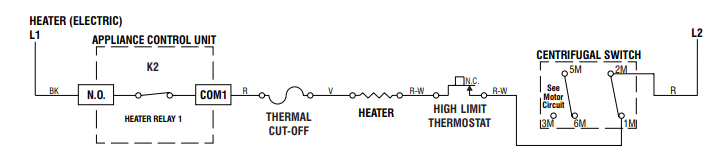

Hello, here is a ladder diagram, hope it helps.

Joats · December 5, 2025, 10:29pm

My dryer has a red and a red W/white stripe coming from the dryer plus a red jumper and a black jumper. I’m sure the diagram would help if I could read it correctly.
