Brand: Jenn-air
**Model Number:**JUD248CWRS01
Main Symptom: display panel no lights
Wondering if any tech docs, wiring schematics from control board to display panel available. Or service manuals
Thanks
The wiring diagram is available for model JUD248CWRS01, and is attached. Here are images showing the connection layouts between the main control and the display. The image includes:
-

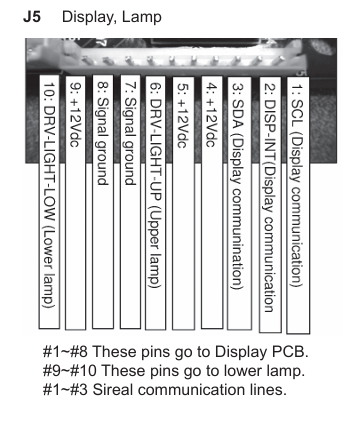

The J5 connector on the main control
-
The J1 and J2 connectors for the display
-
The overall connector layout and orientation
One thing definitely worth checking is the wire harness along the door track area. Those wires can flex repeatedly over time and occasionally break internally or develop intermittent connections, which can cause display and communication issues.
Wire harness- W10488357 Refrigerator Wire Harness Assembly | Genuine Whirlpool OEM In Stock
wiring-sheet-JUD248CWRS01.pdf (419.4 KB)
